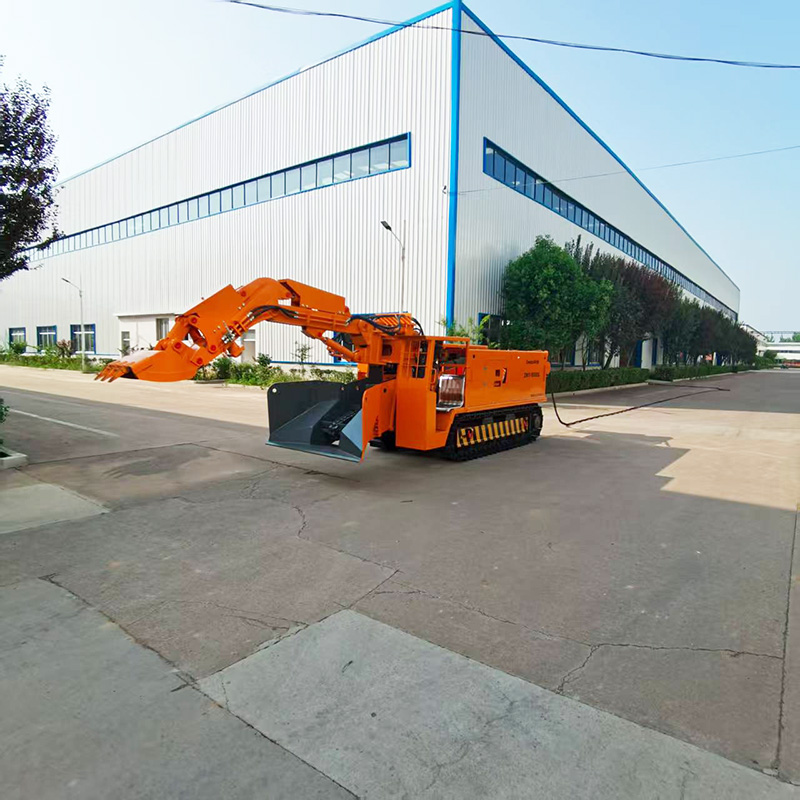

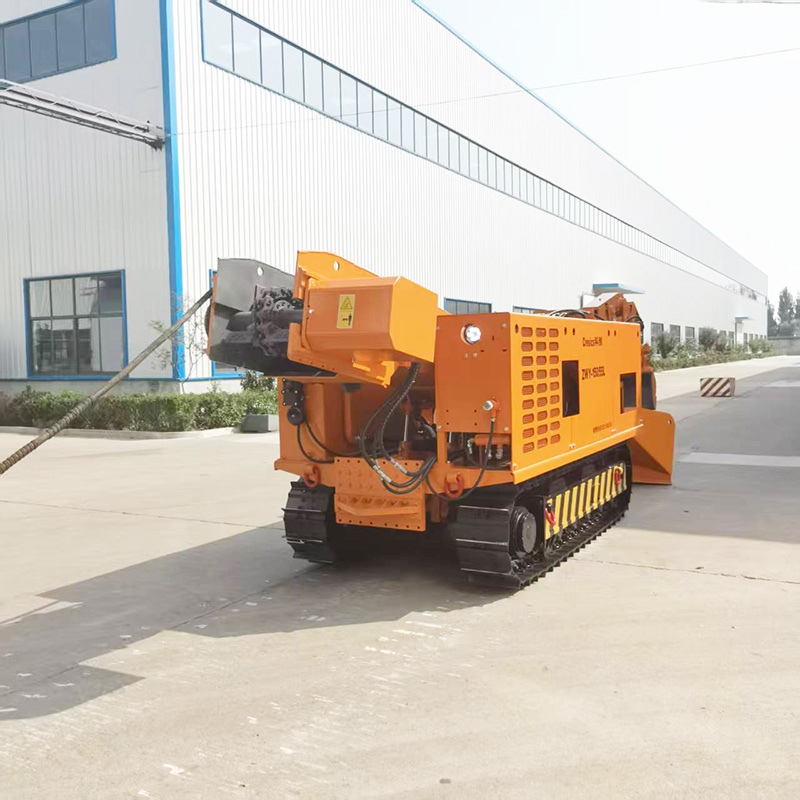

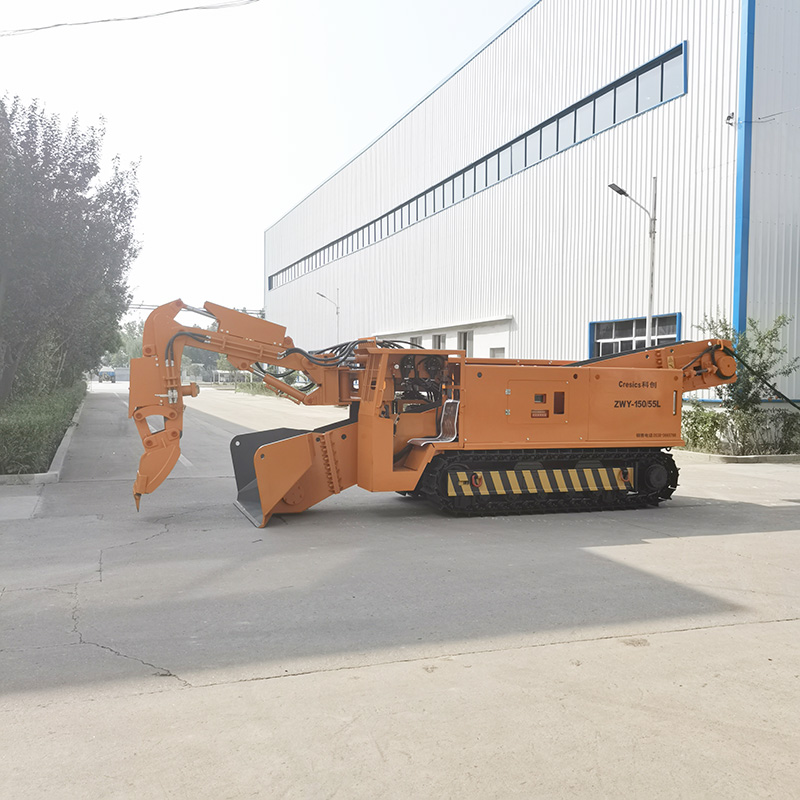

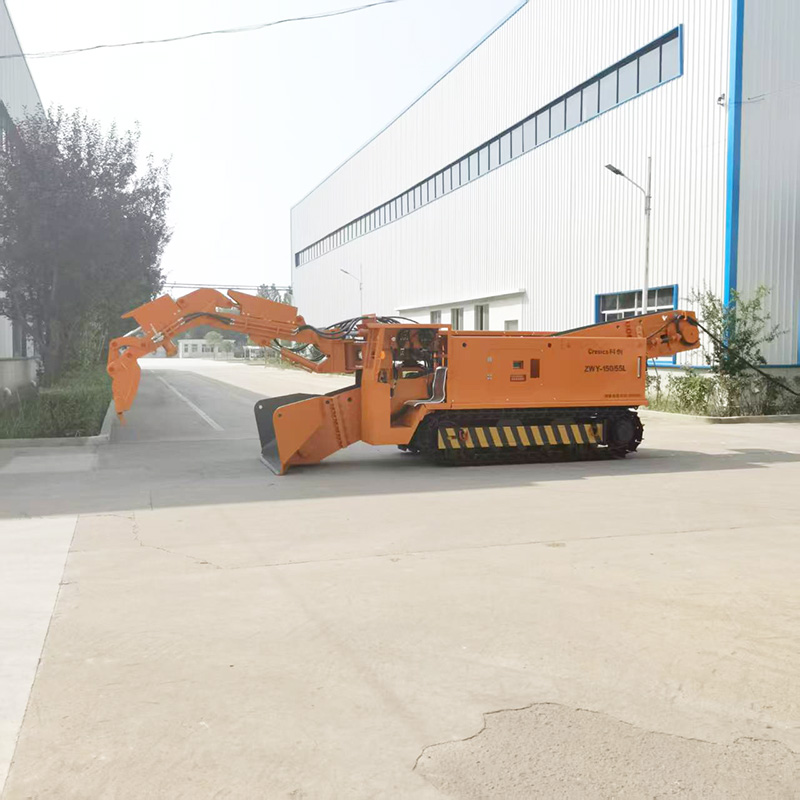

Small Mucking Loader
1. Compact body, suitable for extremely narrow tunnels of 3.2×2.2 meters.
2. Compact tracks, easy to traverse complex terrain
3. Flexible customized operating system,Can be equipped with crushing device and cable reel.
4.It can be connected with a belt conveyor or scraper conveyor at the rear to achieve high-efficiency excavation and transportation.
Product Name:
The ZWY-80/30L Small Mucking Loader, Special Equipment for Underground Mine Excavation and Conveying
Model：ZWY-80/30L (ZWY Series)Brand：Kechuang EquipmentDelivery Time：15–20 working daysWarranty：1-year warranty for the main machine
Stable & Durable：Strong rigidity with minimal deformation; core hydraulic components are from well-known brands, with a service life of more than 10 years.
Flexible Customization：External dimensions, installed power and other parameters can be customized according to customer requirements.
Support the installation of functional modules such as hydraulic breakers and cable reels to realize multi-purpose use of one machine.

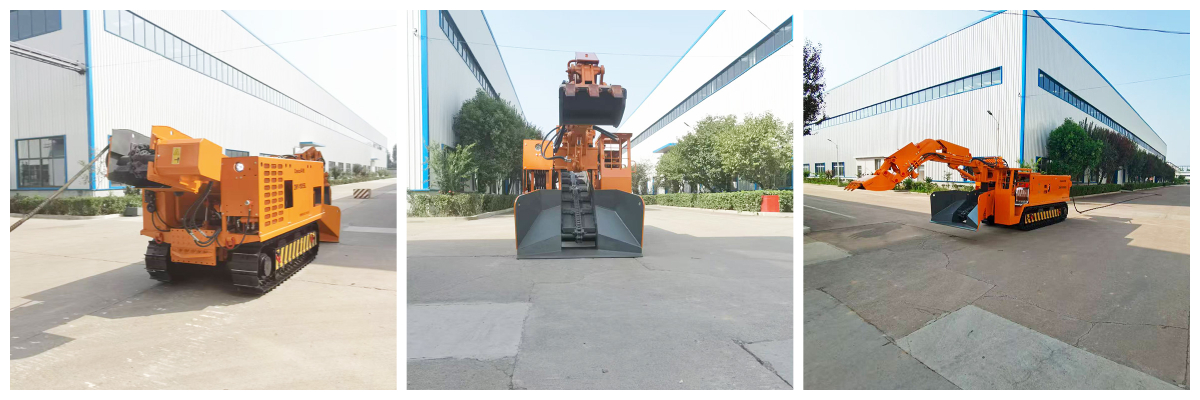

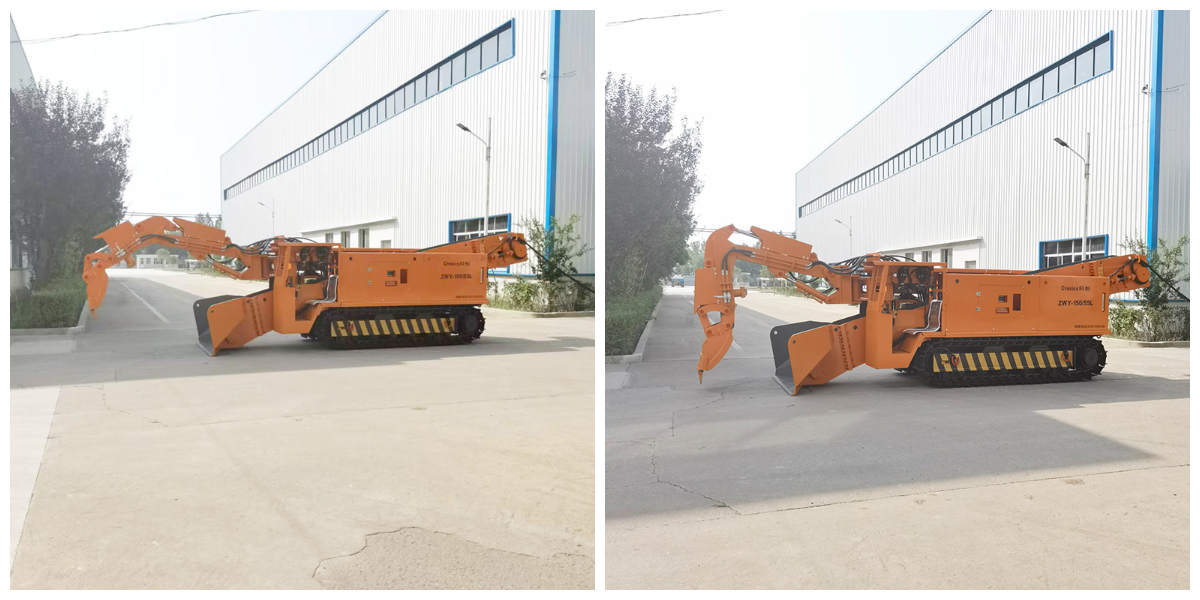

Details Display
Multifunctional：Integrates digging, crushing and conveying in one unit.

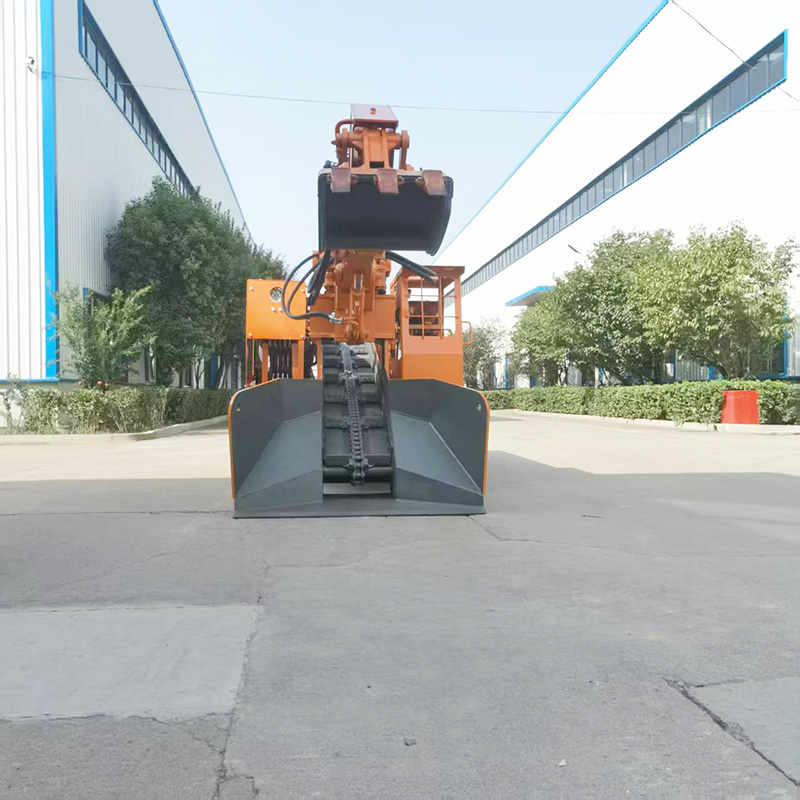

Scraper Conveyor Structure：It adopts high-strength wear-resistant materials and reinforced structural design, featuring outstanding resistance to impact, deformation and fracture.
Underground Advantages: Equipped with a complete machine explosion-proof system, it is suitable for underground mining operations. Combined with a gas monitoring system, it maximizes operational safety.
Parameters
Item | ZWY-80/30L | ZWY-80/37L | ZWY-80/45L | ZWY-100/45L | ZWY-120/65L | ZWY-150/55L | ZWY-180/75L | ZWY-220/75L | |
Main Technical Parameters | |||||||||
Applicable Section (Width × Height) m | 3.2×2.2 | 3.5×2.5 | 4×2.5 | 4.8×3.2 | 5.4×4.0 | 5.8×4.5 | 6.2×5 | 7.5×5.5 | |
Applicable Axis Width* | (-16° ~ +16°) | (-20° ~ +20°) | ( -32° ~ +32°) | ||||||
Loading Capacity m³/h | 80 | 100 | 120 | 150 | 180 | 220 | |||
Control Mode | Hydraulic Pilot Control | ||||||||
Main Motor Power KW | 30 | 37 | 45 | 55 | 75 | ||||
Digging Width mm | 3200 | 3500 | 4000 | 4600 | 5400 | 5800 | 6200 | 7000 | |
Digging Distance mm | 1500 | 1600 | 1800 | 2150 | 2500 | 3300 | |||
Digging Height mm | 1800 | 2200 | 3000 | 3500 | 3800 | 4000 | 4300 | ||
Digging Depth mm | 400 | 500 | 800 | 990 | 1050 | ||||
Unloading Height (Adjustable) mm | 1200 | 1450 | 2000 | ||||||
Unloading Distance (Adjustable) mm | 1150 | ||||||||
Max. Rotation Angle* | ±36° | ±45° | ±55° | ||||||
Max. Transport Material Size mm | < φ500 | < φ580 | < φ625 | < φ780 | |||||
Boom Structure | Single Boom | Single Boom (or Double Boom) | Double Boom | ||||||
Hoisting Speed m/min | 44 | ||||||||
Track Gauge (Adjustable) mm | 890 | 890 | 900 | 1110 | 1190 | 1400 | |||
Travel Speed m/s | 0.5 | ||||||||
Ground Clearance mm | 300 | ||||||||
Min. Turning Radius m | ≥ 5 | ≥ 7 | ≥ 8 | ||||||
Ground Pressure MPa | ≤ 0.1 | ||||||||
Rated Working Pressure MPa | 23 | ||||||||
Max. Bucket Size | Length mm | 3350 | 4200 | ||||||
Width mm | 850 | 900 | 1000 | 1100 | 1200 | ||||
Height mm | 1200 | 1400 | 1500 | 1650 | |||||
Max. Bucket Weight Kg | 2300 | 3000 | 3500 | ||||||
Max. Overall Dimensions (Working) | Length mm | 6000 | 6500 | 6800 | 7000 | 7500 | 8800 | ||
Width mm | 1750 | 1800 | 2200 | 2350 | 2640 | ||||
Height mm | 1750 | 1750 | 1800 | 2900 | 3250 | 3600 | 3800 | 4200 | |
Machine Weight Kg | 7600 | 8000 | 8200 | 11200 | 13800 | 15200 | 17800 | 20000 | |
Customer Feedback
⭐Manual Labor (5–8 workers per team):
Hourly mucking capacity: 5–10 m³/h
Daily output (8 hours): 40–80 m³
Tunneling progress: 2–3 m/day (narrow roadway)
⭐Mini Mucking Loader (Single Operator):
Hourly mucking capacity: 40–80 m³/h (standard); 60–100 m³/h (high-efficiency type)
Daily output (8 hours): 320–640 m³
Tunneling progress: 8–12 m/day (same working conditions)
Efficiency Multiple: 4–8 times; up to 10 times in some working conditions.
Delivery and Transportation
We offer global delivery.
●Orders will be processed within 1-3 working days after payment confirmation.
●After the order is dispatched, the tracking number will be sent to your email.
●Estimated delivery time: 7-15 working days (varies by country and customs).
●Please ensure your delivery address is correct before placing the order.
●If you encounter any shipping issues, please contact our customer service team.

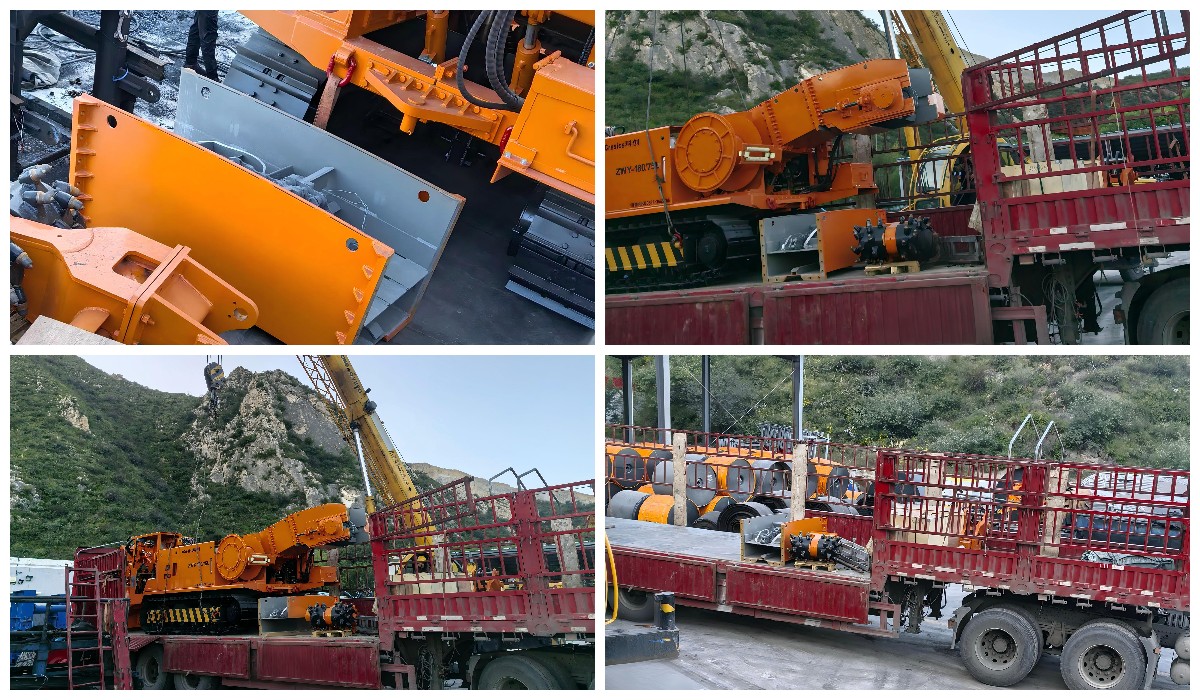

Packaging and Delivery
Container Shipping (Mainstream):
Conventional model: 1 unit per 20GP standard container (with conveyor frame removed).
Compact model: 2 units per 20GP container, greatly reducing unit freight cost.
Bulk Carrier / Ro-Ro Vessel:Oversized or overweight equipment can be shipped in flat rack containers or via bulk carriers.
Land Transportation Connection:Flatbed trucks or high-side trucks are used from factory to port, with full-time supervision and photo documentation throughout the loading process.
