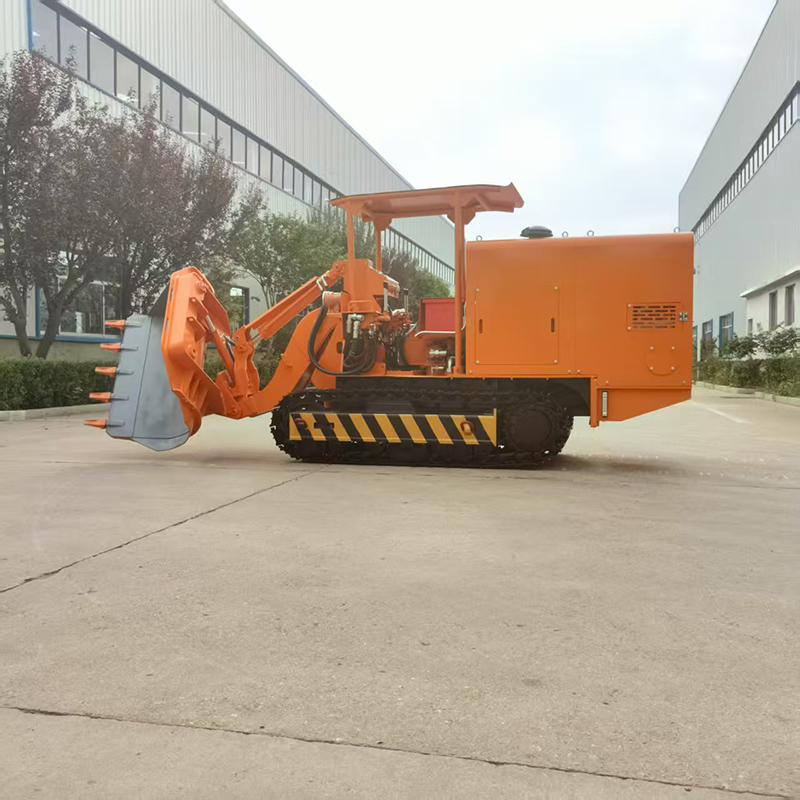

100 Side Unloading Rock Loader
1. The multi-functional integrated design covers all kinds of operation scenarios in one step, and meets the usage requirements of various working conditions.
2. It can simultaneously complete the core operations of loading, transportation, and bottom cleaning, significantly improving the operation efficiency.
3. It can assist in completing supporting tasks such as scaffold transportation and site leveling, effectively expanding the application scenarios of the equipment.

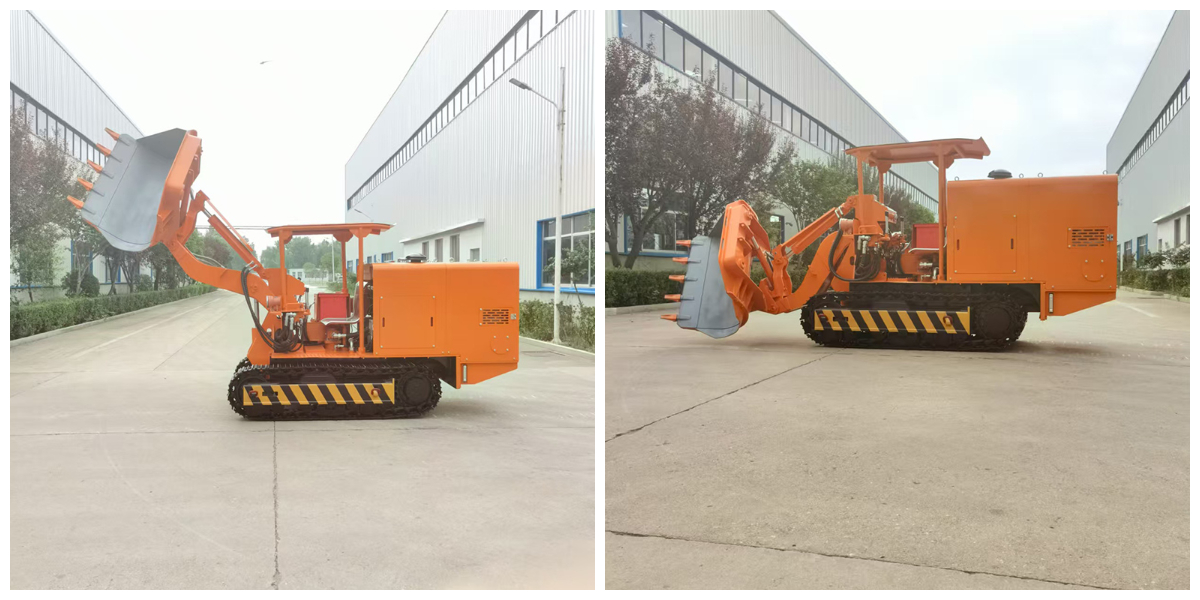

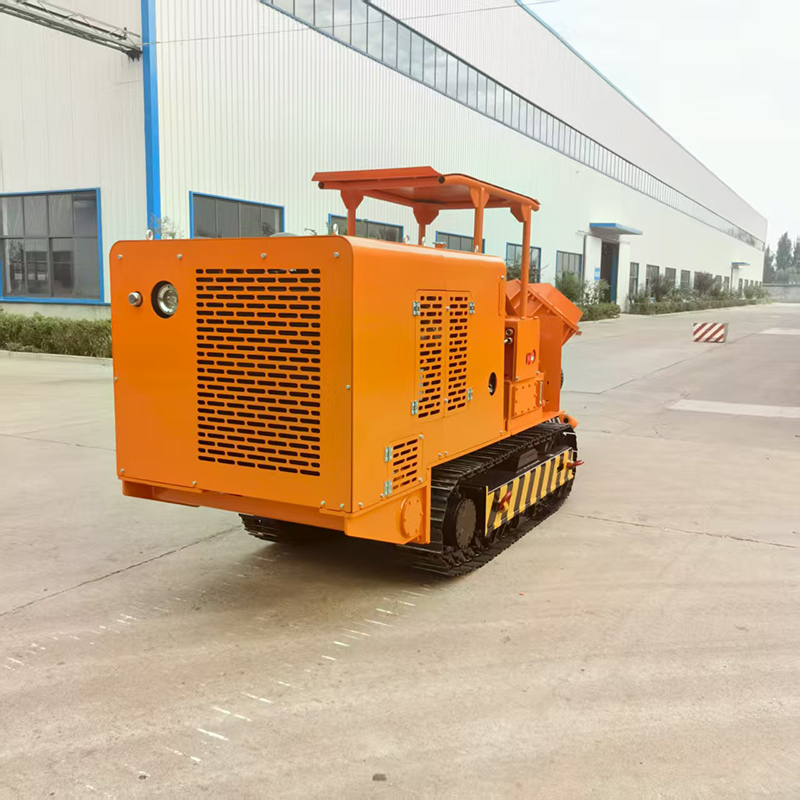

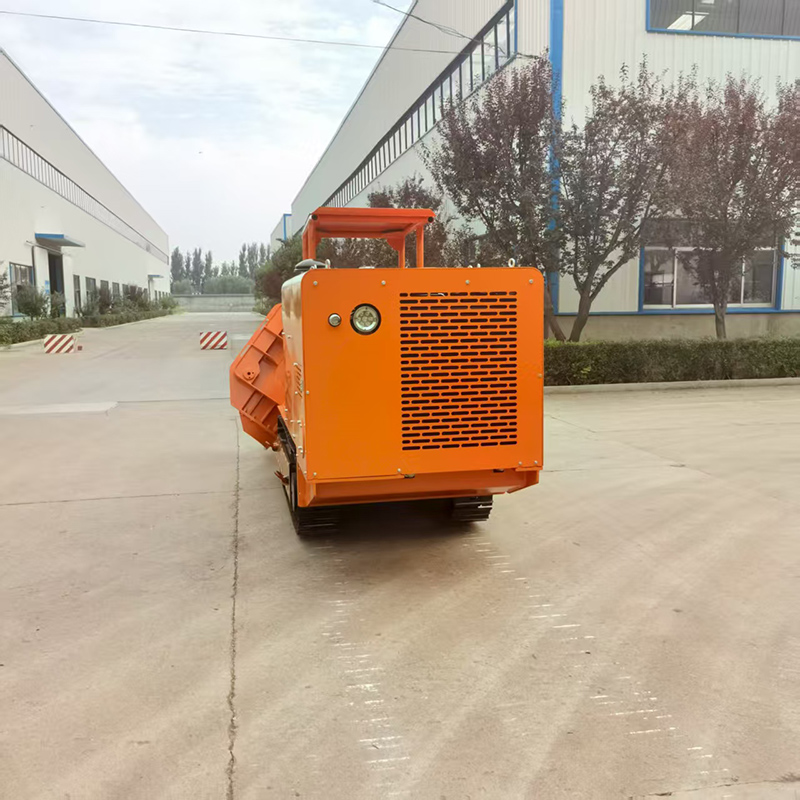

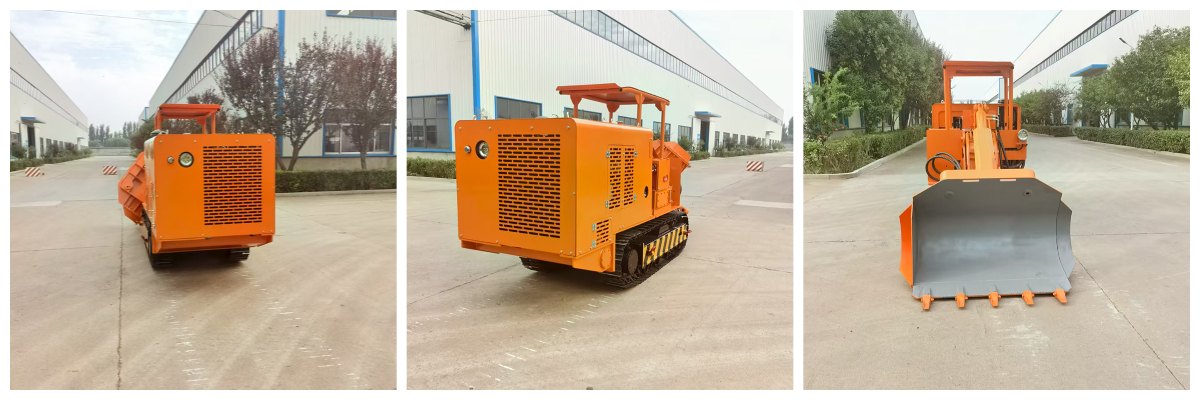

Product Details
The 100 Side Unloading Rock Loader（ZCN100R)adopts a modular design as a whole and is easy to maintain. The breaker can be replaced with a breaker to complete gravel and rock breaking operations. The body size is selected according to the actual user scenario. It is an ideal loading solution under heavy-load and narrow working conditions.
The side-discharging rock loader relies on the efficient collaboration of diesel power and hydraulic systems. It not only has low power transmission loss and rapid hydraulic response, but also can accurately control shovel loading and unloading movements. It can achieve efficient operations under heavy load conditions and effectively improve material transfer efficiency.
As an underground mining loading equipment driven by diesel engines, the entire machine can adopt an explosion-proof design. It can complete operations in environments with high gas content and dust, eliminating potential safety hazards. Meanwhile, the tracked movement can perfectly adapt to various complex road conditions such as muddy, damp and soft terrain.
Key Features
Side unloading system enables efficient material discharge in narrow tunnels and underground passages
Diesel power system provides stable torque and strong adaptability to harsh mining conditions
Compact and well-balanced structure improves maneuverability and operational safety
Reinforced chassis and key components enhance durability and service life
Designed for long working hours with consistent performance and reduced downtime
Technical Specifications
The 100 Side Unloading Diesel Loader is designed with a balanced combination of power, load capacity, and operational efficiency. The diesel engine delivers reliable performance suitable for underground mining environments with poor ventilation and heavy loads. Optimized bucket capacity and hydraulic system ensure smooth lifting, loading, and unloading operations. Detailed technical specifications, including rated load, bucket capacity, engine configuration, and dimensions, can be found in the complete specification table below.
Product Model | ZCN60R | ZCN80R | ZCN100R | ZCN120R | ZCN150R | ZCN180R |
Overall Dimensions (L*W*H mm) | 4500*1510*2060 | 4585*1636*2088 | 4855*1636*2150 | 5200*1820*2150 | 5250*2120*2150 | 5380*2420*2200 |
Bucket Capacity (m³) | 0.6 | 0.8 | 1 | 1.2 | 1.5 | 1.8 |
Bucket Width (mm) | 1510 | 1636 | 1636 | 1820 | 2120 | 2420 |
Max. Dumping Height (mm) | 1700 | 1900 | 1900 | 1900 | 2000 | 2000 |
Max. Dumping Angle (°) | 55 | 55 | 55 | 55 | 55 | 55 |
Max. Traction Force (KN) | 25 | 40 | 40 | 50 | 50 | 50 |
Rated Traction Force (KN) | 20 | 30 | 30 | 45 | 45 | 45 |
Max. Travel Speed (m/min) | 30 | 30 | 30 | 30 | 30 | 30 |
Min. Ground Clearance (mm) | 180 | 180 | 200 | 200 | 200 | 200 |
Max. Undercutting Depth (mm) | 450 | 500 | 500 | 500 | 500 | 500 |
Gradeability (°) | ±16° | ±16° | ±16° | ±16° | ±16° | ±16° |
Track Shoe Width (mm) | 260 | 300 | 300 | 300 | 300 | 300 |
Track Ground Pressure (MPa) | 0.09 | 0.09 | 0.1 | 0.1 | 0.1 | 0.1 |
Center of Gravity Position (mm) | Xg=694 | Xg=763 | Xg=788 | Xg=815 | Xg=842 | Xg=850 |
Yg=30 | Yg=34 | Yg=35 | Yg=44 | Yg=85 | Yg=100 | |
Noise (dBA) | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 |
Diesel Engine - Installed Power (kW) | 62 | |||||
Starting Method | Electric Start | |||||
Protection Type | Electric Protection | |||||
Engine Speed | 2200rpm | |||||
Travel Working Pressure (MPa) | 20 | 20 | 23 | 23 | 23 | 23 |
System Working Pressure (MPa) | 18 | 18 | 20 | 20 | 20 | 20 |
Operating Weight (without fuel) (kg) | 5200 | 6500 | 7500 | 7900 | 8200 | 9000 |

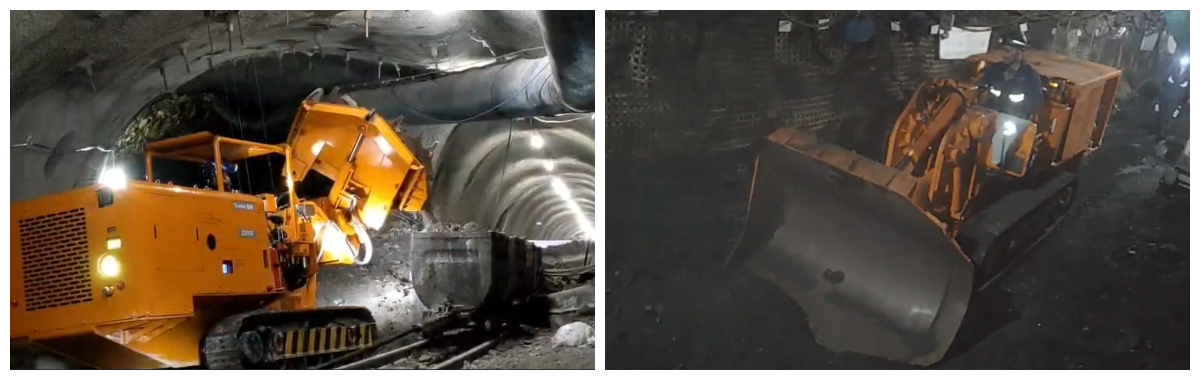

Application Scenarios
This diesel side unloading loader is widely used in underground mining operations, tunnel construction projects, and other confined material handling environments. It is particularly suitable for transporting ore, rock, and bulk materials in mines where space is limited and frequent turning is not possible. The side unloading design helps improve efficiency and reduces operational complexity, making it an ideal solution for modern underground mining logistics.
Why Choose This Model
Compared with conventional loaders, the 100 Side Unloading Diesel Loader offers significant advantages in underground environments. The side unloading mechanism improves unloading efficiency and safety, while the diesel power system ensures consistent performance under demanding conditions. Its robust structure and practical design make it a dependable choice for mining companies seeking reliable and efficient underground loading equipment.
Production Workshop

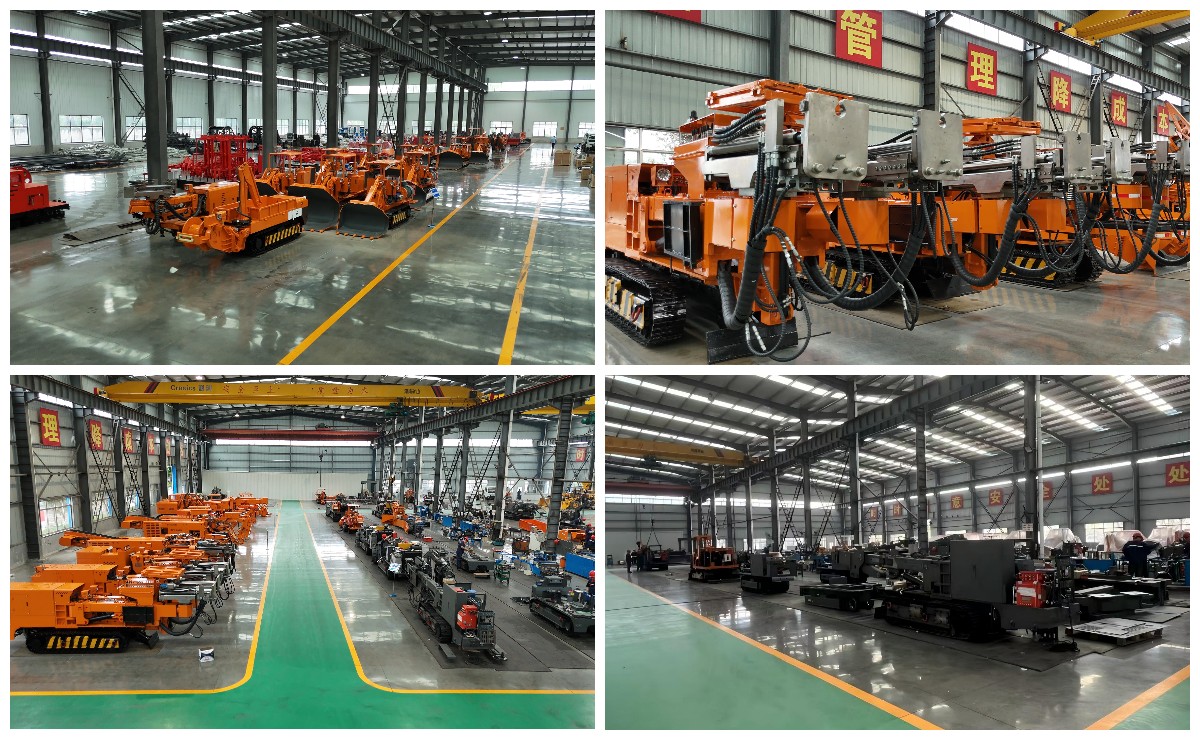

Our production base is equipped with modern and standardized assembly workshops, which are equipped with advanced intelligent production lines that integrate precision, efficiency and environmental protection. This has laid a solid foundation for the supply of high-quality products and the expansion of the global market. As the core part of the entire production chain, the assembly workshop strictly follows international production standards and strict quality control regulations, creating a clean, orderly and safe production environment.
FAQ
Q: Is this loader suitable for narrow underground tunnels?
A: Yes, it is specifically designed for confined underground spaces and narrow tunnels.
Q: What types of materials can it handle?
A: It is suitable for ore, rock, and various bulk materials commonly found in mining operations.
